FILAMENT TAPE

The fiber filament tape is composed of hot melt adhesive coated on the liner material (polyester film and glass fiber filament to increase high tensile strength). It is used for strapping, packaging, sealing, stacking and securing products during transportation.

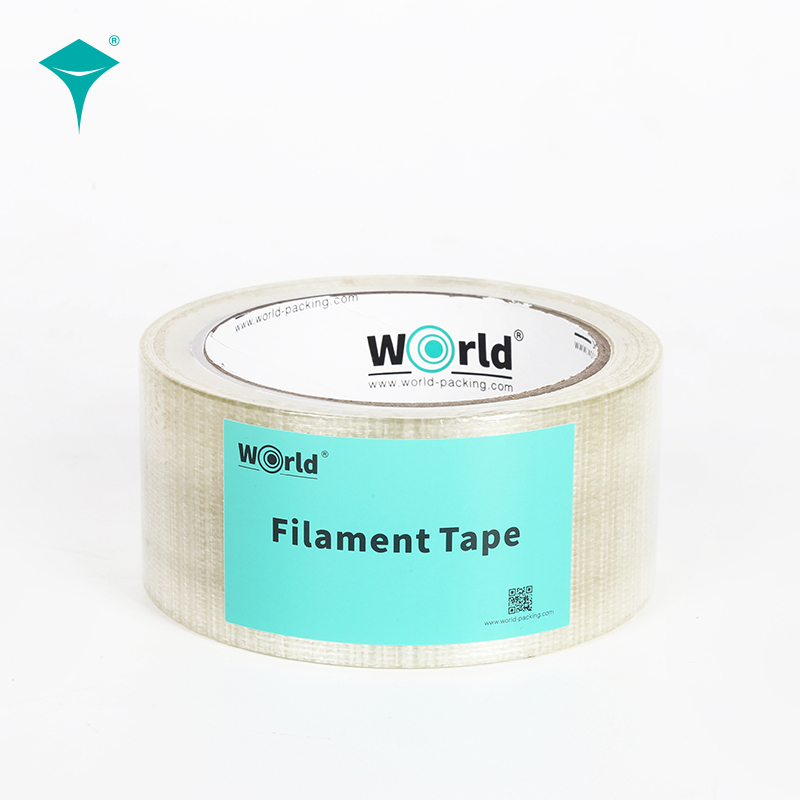

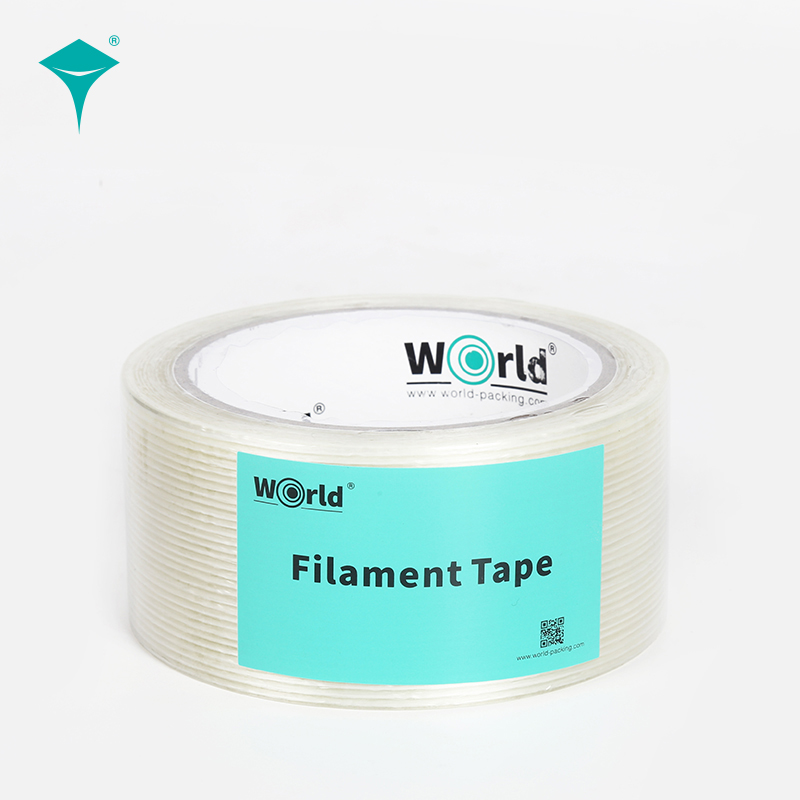

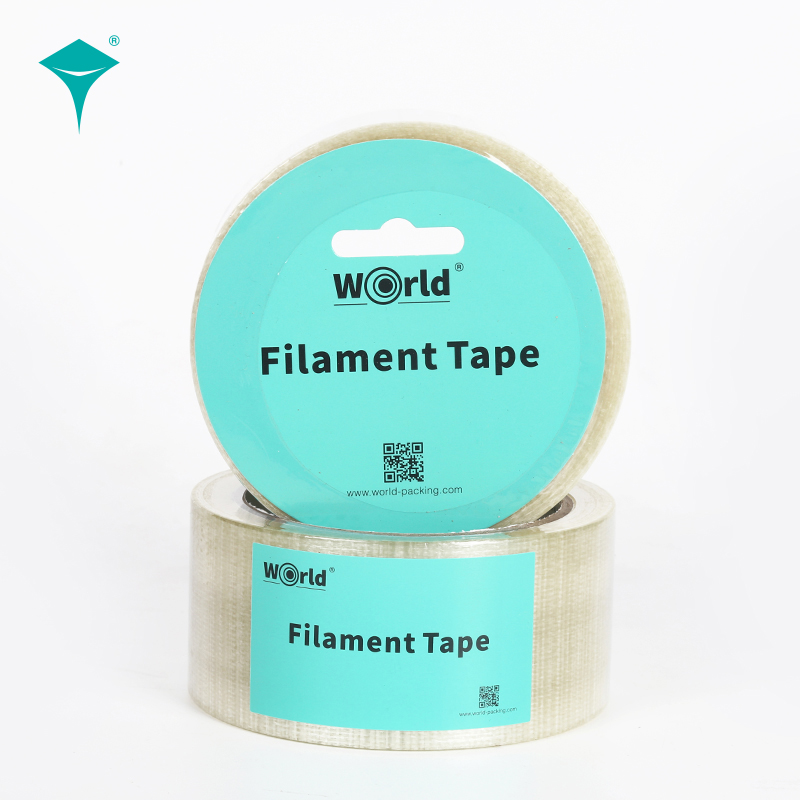

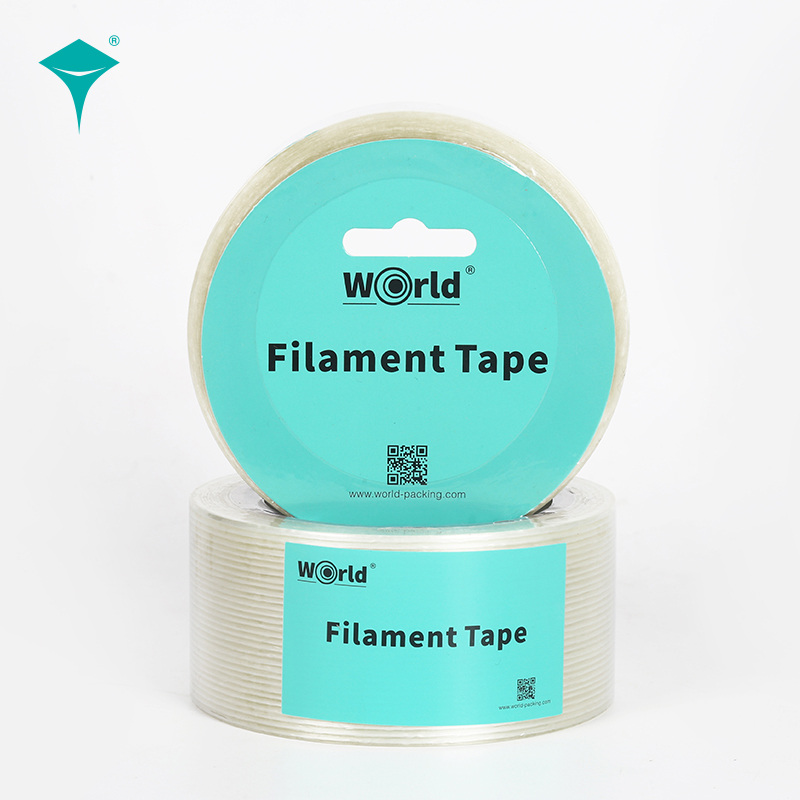

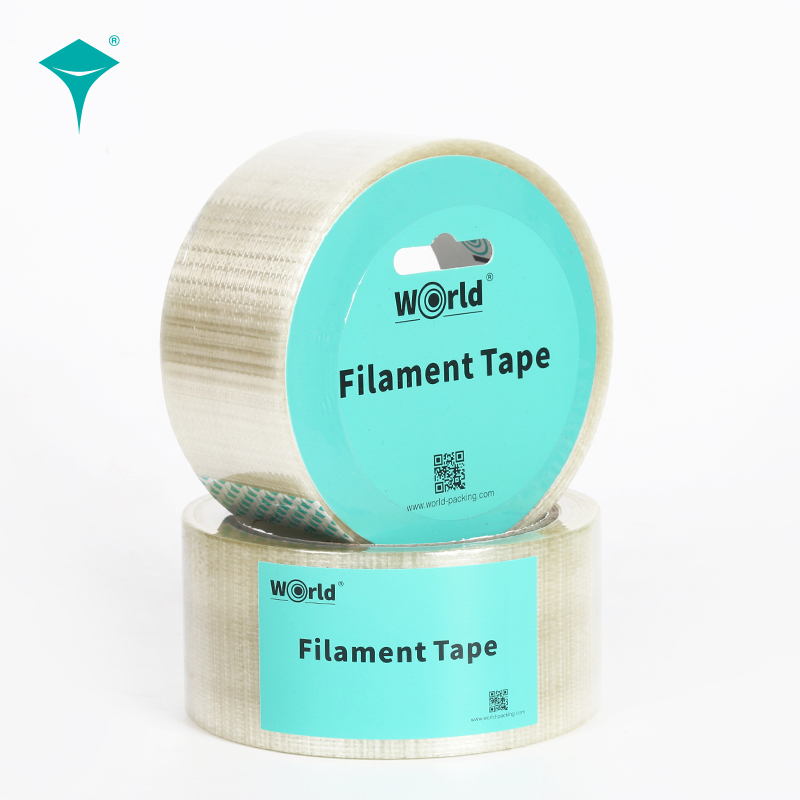

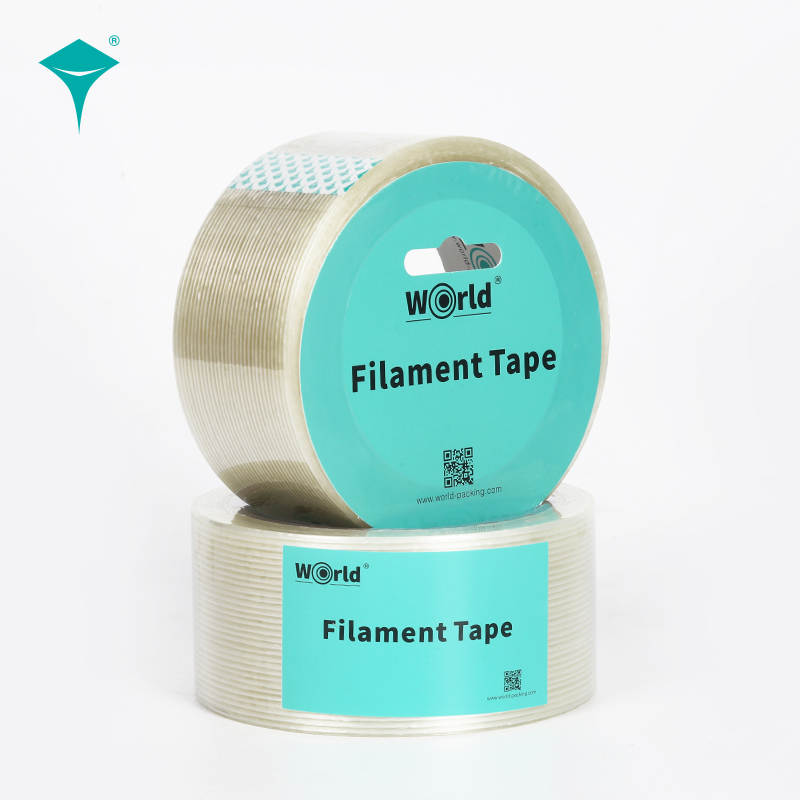

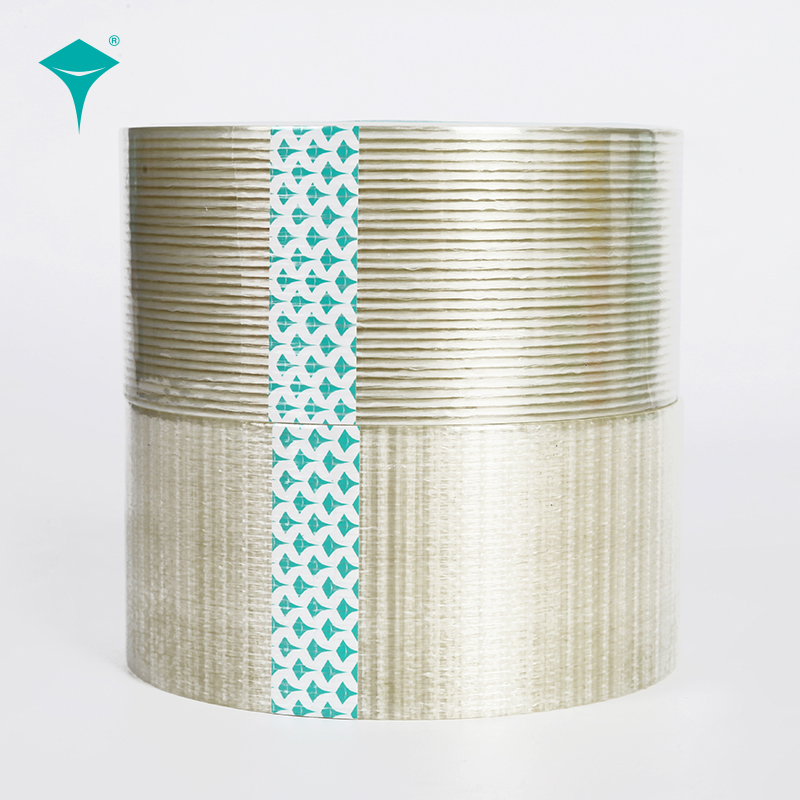

-Appearance Gallery:
-Main Information:
Filament Tape:Specifications
Thickness(mic)135-150mic
Filament typeStraight /Mesh
Length(m)Max 1000
Width (mm)08/12/15/18/19/24/25/36/38/45/48/50/60/72/75/96mm
Core Dimension25/38/50/72mm
Packing Qty72/144/288 Roll per Carton
2 Different Type of Filament Tape
ITEMSG105KDG122G
BackingStraight Fiberglass YarnMesh Fiberglass Yarn
AdhesiveHot MeltHot Melt
ColoursClearClear
Adhesion to Steel(N/In)>=18>=18
Tensile Strength(N/In)>=490>=490
Elongation At Break(%)1212
Total Thickness(mic)150mic ±5%135-150mic ±5%
-Advantage:

We produce various standard and special purpose packaging tapes.
-The standard width is from 24mm to 288mm.
-The standard thickness ranges from 130mic to 180mic.
-Non-standard sizes and special applications can meet the needs of short delivery time.

-Application:

>Good adhesion, fast adhesion, impact resistance
>Excellent corrosion resistance, wear resistance, UV resistance
>Metal coil strapping
>Residual-free temporary fixation of components in components (appliances)
>Tear resistance, abrasion resistance, splitting resistance, abrasion resistance, high tensile strength

>Good adhesion, fast adhesion, impact resistance
>Excellent corrosion resistance, wear resistance, UV resistance
>Metal coil strapping
>Residual-free temporary fixation of components in components (appliances)
>Tear resistance, abrasion resistance, splitting resistance, abrasion resistance, high tensile strength

-POPULAR QUESTIONS:

Yes, of course. Sample is free, but buyer should bear the shipping charge.
Sample time: 2-5 working days

Payment term: we can accept T/T, L/C, D/P, most customer deal with T/T “30% Advance, with 70% against Bill on loading”.

Delivery time: we have over 10 production line, can allow 15-20days after advance payment confirmed.

Yes, of course, we will always welcome your visit.

Also if you attend the exhibition worldwide,  you can always find us there.

Contact us, we will send you more details!
