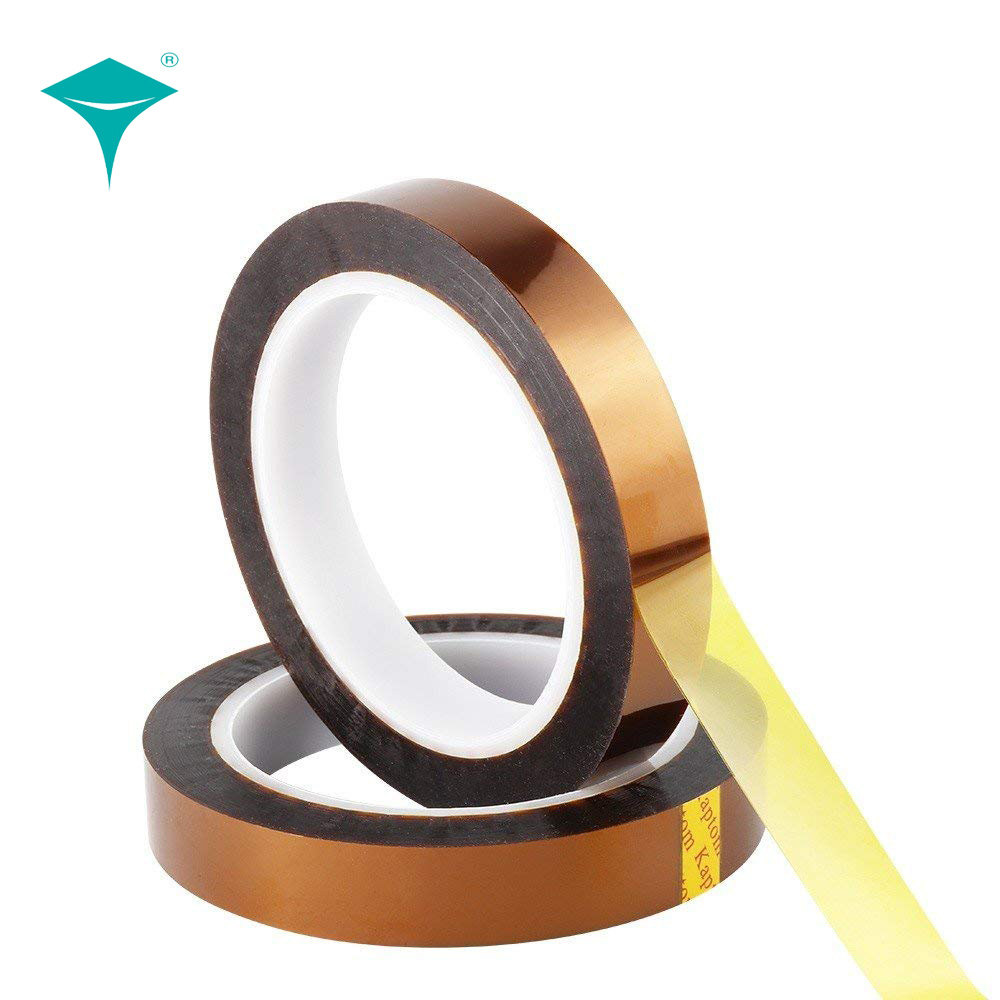

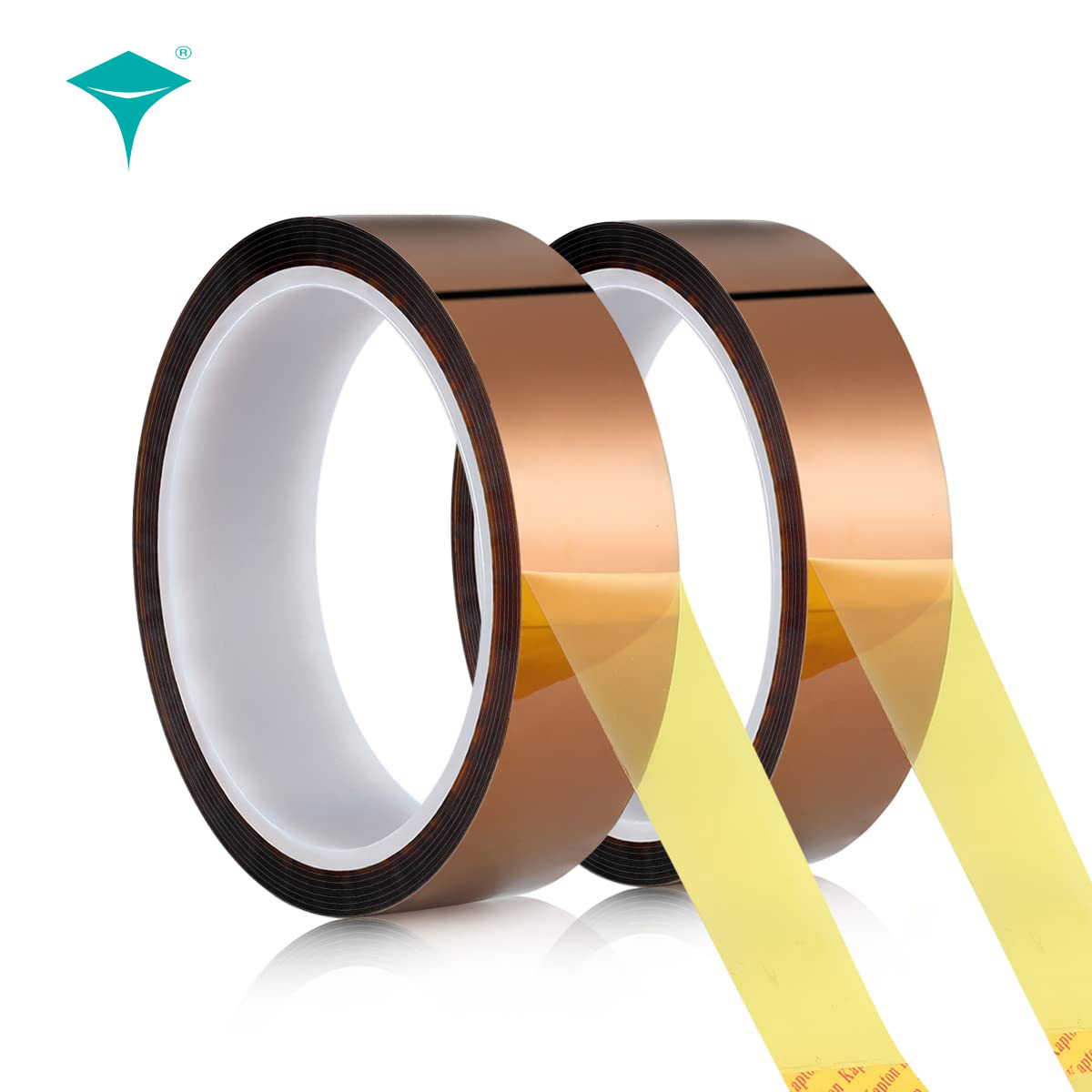

POLYIMIDE(KAPTON) TAPE
-Appearance Gallery:
| KaptonTape: | Specifications |

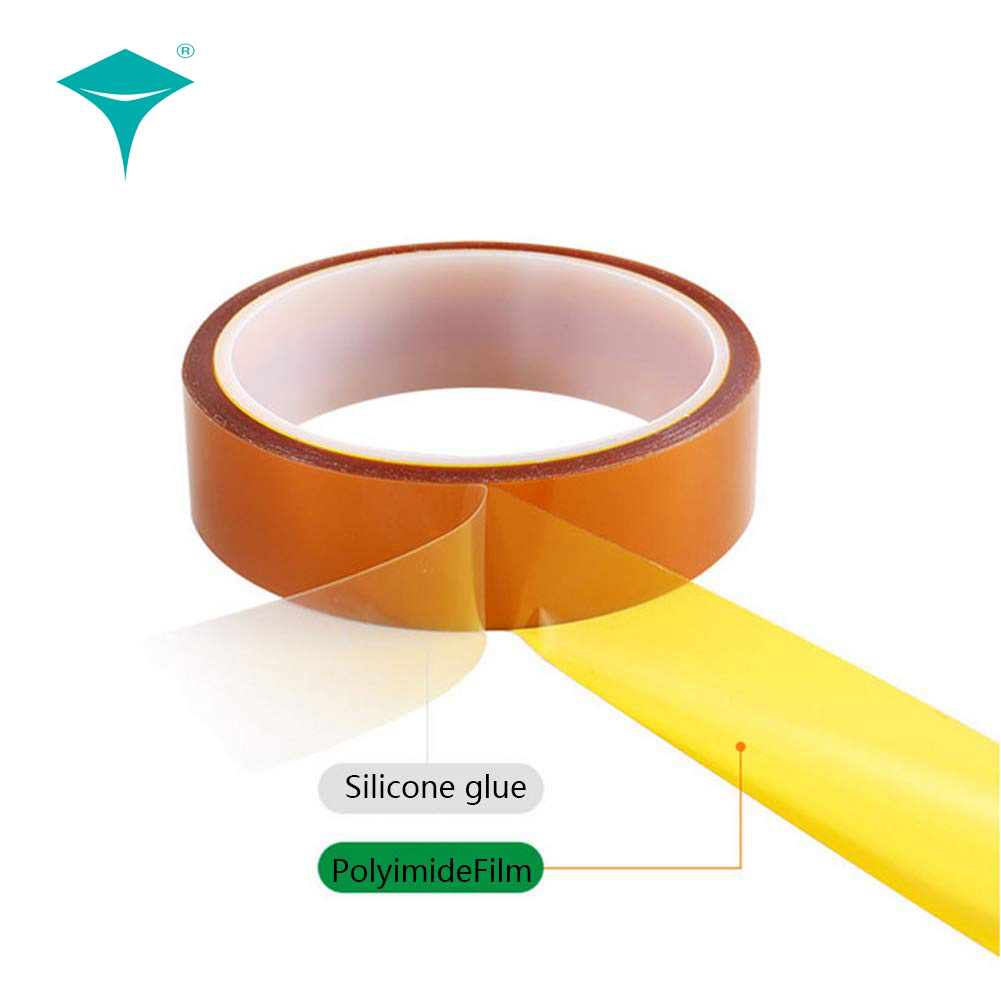

| Backing | Polyimide film |
| Adhesive | Silicone |
| Colours | Amber |
| Adhesive to Steel(N/In) | 5 |
| Tensile Strength(N/In) | >=140 |
| Elongation At Break(%) | >=40 |
| Voltage Resistance(KV) | 4 |
| Temperature Resistance(°C) | 260°C |
| Total Thickness(Mic) | 55mic & 100mic |
-Specification:
We produce various standard and special-purpose Polyimide tapes.

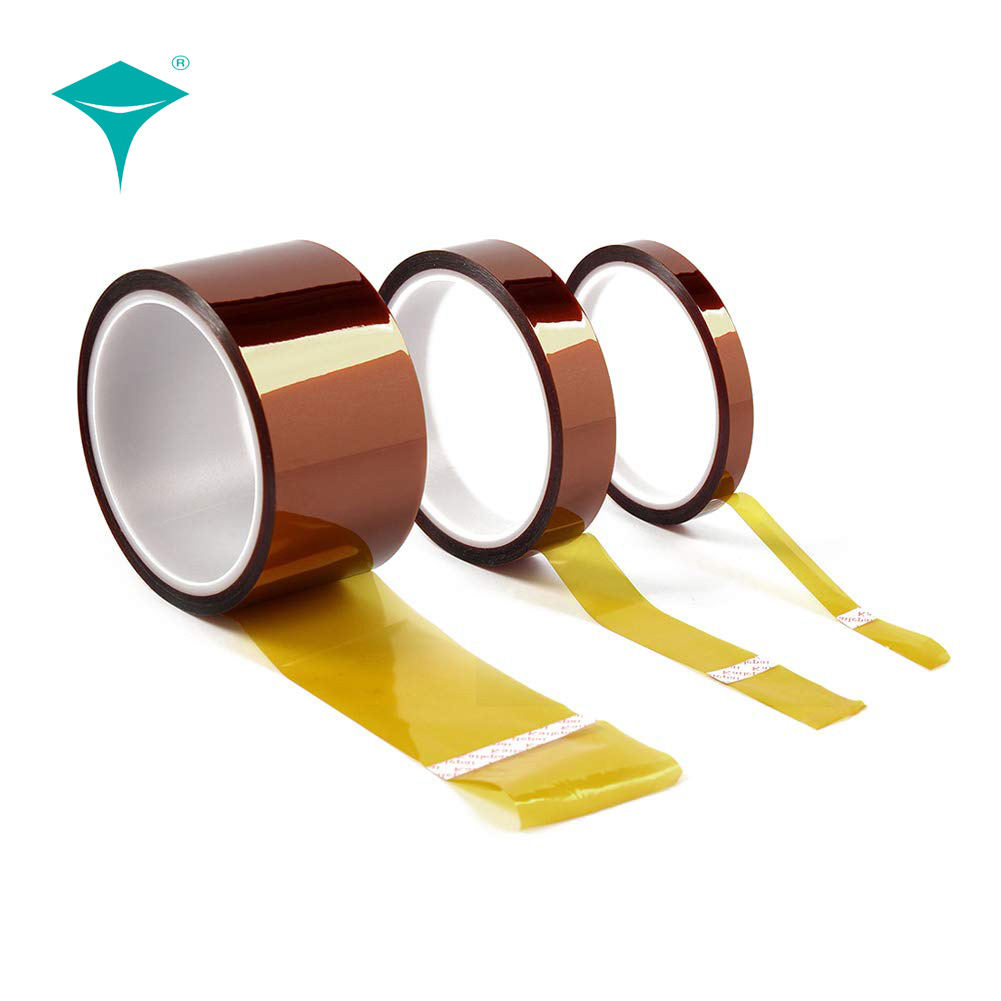

-The standard width is 6mm to 72mm.
-The 3 standard thickness ranges: 50mic, 55mic, 100mic.
-Non-standard sizes and special applications can meet the needs of short delivery time
-Application:
> PCB gold finger masking and protection under high temperature wave soldering
>The coil insulation binding of transformers.
>The fixing of Li batteries of mobile phone.
>The fixing of heaters.
>The high temperature masking of electrical parts.
-Product Precautions
> PCB gold finger masking and protection under high temperature wave soldering
>The coil insulation binding of transformers.
>The fixing of Li batteries of mobile phone.
>The fixing of heaters.
>The high temperature masking of electrical parts.
-POPULAR QUESTIONS:
Yes, of course. Sample is free, but buyer should bear the shipping charge.
Sample time: 2-5 working days
Payment term: we can accept T/T, L/C, D/P, most customer deal with T/T “30% Advance, with 70% against Bill on loading”.
Delivery time: we have over 10 production line, can allow 15-20days after advance payment confirmed.
Yes, of course, we will always welcome your visit.
Also if you attend the exhibition worldwide, you can always find us there.
Contact us, we will send you more details!
